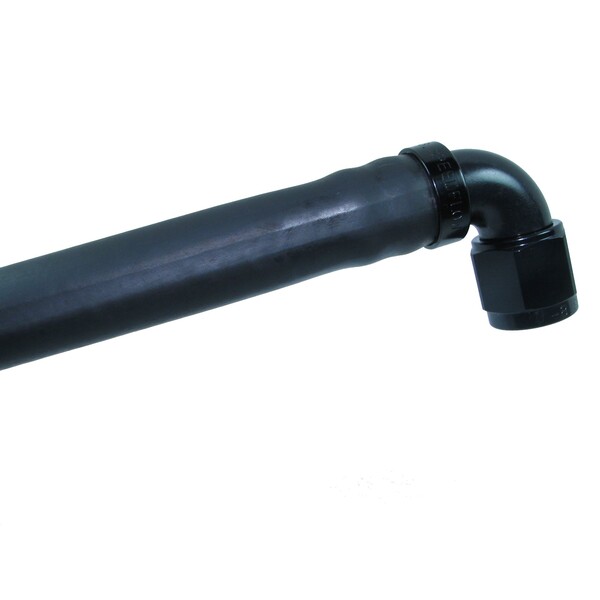

Our 400 series hose is manufactured by Gates and designed specifically for 400 series pushlock style fittings. This hose has an elastomer tube with a smooth outer cover. This is not recommended for use with unleaded fuels or use in high pressure applications or suction systems. This hose suitable for use with synthetic lubricants, oils, air, coolant and methanol.
Temperature Range: -46°C (-50.8°F) to 100°C (212°F).
| SIZE | PART NO. BLUE | PART NO. BLACK | INSIDE DIA. | OUTSIDE DIA. | OPERATING PRESS. | BURST PRESS. | WEIGHT | BEND RADIUS |
|---|
| INCH | MM | INCH | MM | PSI | BAR | PSI | BAR | KG/M | LB/FT | INCH | MM |
|---|
| -4 | 400-04 | 400-04-P | 0,25 | 6,35 | 0,5 | 12,7 | 250 | 17 | 1000 | 69 | 0,1 | 0,07 | 3 | 76,2 |
| -6 | 400-06 | 400-06-P | 0,375 | 9,53 | 0,62 | 15,75 | 250 | 17 | 1000 | 69 | 0,16 | 0,11 | 3 | 76,2 |
| -8 | 400-08 | 400-08-P | 0,5 | 12,7 | 0,75 | 19,05 | 250 | 17 | 1000 | 69 | 0,22 | 0,15 | 5 | 127 |
| -10 | 400-10 | 400-10-P | 0,625 | 15,88 | 0,9 | 22,86 | 250 | 17 | 1000 | 69 | 0,3 | 0,2 | 6 | 152,4 |
| -12 | 400-12 | 400-12-P | 0,75 | 19,05 | 1,03 | 26,16 | 250 | 17 | 1000 | 69 | 0,36 | 0,24 | 7 | 177,8 |
